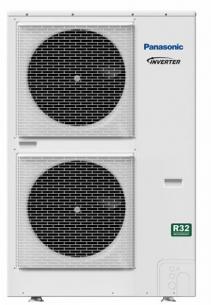

PANASONIC LUFT/LUFT UDEDEL U-200PZH2E8

Panasonic PACi Elite 20 kW Udedel, Passer til indedel S-200PE3E5B, Fjernbetjening CZ-RWS3 og med kabel CZ-RTC5B Cooling capacity Nominal (Min - Max) kW 19,50 (5,40 - 21,00) EER W/W 3,10 SEER 5,11 Pdesign kW 19,50 Input power cooling kW 6,29 Heating capacity Nominal (Min - Max) kW 22,40 (5,60 - 25,00) COP W/W 3,60 SCOP 3,57 Pdesign at -10°C kW 17,00 Input power heating kW 6,22 Indoor unit S-200PE3E5B Power source V / ph / Hz 220 - 230 - 240 / 1 / 50 External static pressure at shipment (with booster cable) Pa 75 - 120 - 180 Air volume Hi / Med / Lo m³/min 72 / 63 / 53 Sound pressure 4) Hi / Med / Lo dB(A) 46 / 44 / 41 Dimension H x W x D mm 486 x 1456 x 916 Net weight kg 86 Outdoor unit U-200PE2E8A Power source V / ph / Hz 380 - 400 - 415 / 3 / 50 Recommended fuse A 15 Air volume Cool / Heat m³/min 164 Sound pressure Cool / Heat (Hi) dB(A) 60 / 62 Dimension H x W x D mm 1500 x 980 x 370 Net weight kg 127 Piping connections Liquid pipe Inch (mm) 3/8 (9,52) Gas pipe Inch (mm) 1 (25,40) Pipe length range m 5 ~ 120 Elevation difference (in/out) 6) m 30 Pipe length for additional gas m 30 Additional gas amount g/m 50 Refrigerant (R410A) / CO2 Eq. kg / T 5,60 / 11,6928 Operating range Cool Min ~ Max °C -15 ~ +46 Heat Min ~ Max °C -20 ~ +24
