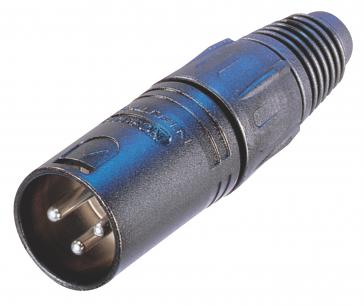

Stik XLR Han Metal Sort
70,00
DKK for 1 stk.
Se pris uden moms
Pris uden moms 56,00 DKK
Benyt prismatch - tryk her
Om produktet
3-polig XLR-hane
Svart metallhus och guldkontakter
Svart metallhus och guldkontakter
Belægning:
Nikkelplateret
Diameter:
8.0 mm
Emballagetype:
Plastikpose
Farve:
Sort
Indhold:
1 stk.
Kontakternes stiktype:
Han
Stikdesign - side A:
Lige
Temperaturområde:
-30 - 80 °C
Tilslutnings Type:
XLR 3-Pin
Vare nr.:
NTR-NC3MXB
EAN nr:
7613187003202
Enhed:
stk.
Min køb:
1
Leveringstid:
3-5 dage
TECHNICAL DATA
Electrical
Number of contacts: 3
Contact resistance: ≤: 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤: 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤: 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 0.2 µm Au hard alloy over 2 µm Ni
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
Electrical
Number of contacts: 3
Contact resistance: ≤: 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤: 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤: 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 0.2 µm Au hard alloy over 2 µm Ni
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
