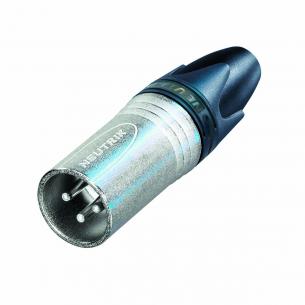

Stik XLR Han Metal
50,00
DKK for 1 stk.
Se pris uden moms
Pris uden moms 40,00 DKK
Benyt prismatch - tryk her
Om produktet
3-polig XLR-hane
Nickelhus och silverkontakter
Nickelhus och silverkontakter
Emballagetype:
Plastikpose
Farve:
Sølv
Indhold:
1 stk.
Kontakternes stiktype:
Han
Materiale:
Metal
Stikdesign:
Lige
Stikhusmateriale:
Metal
Strøm:
16 A
Temperaturområde:
-30 - 80 °C
Tilslutnings Type:
XLR 3-Pin
Tilslutningsbelægning:
Nikkelplateret
Vare nr.:
NTR-NC3MXX
EAN nr:
7613187000379
Enhed:
stk.
Min køb:
1
Leveringstid:
3-5 dage
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
TECHNICAL DATA
Product
Connector: Type XLR
Gender: male
Electrical
Number of contacts: 3
Contact resistance: ≤: 3 m
Insulation resistance initial: > 2 G
after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤: 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤: 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 2 µm Ag
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
TECHNICAL DATA
Product
Connector: Type XLR
Gender: male
Electrical
Number of contacts: 3
Contact resistance: ≤: 3 m
Insulation resistance initial: > 2 G
after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤: 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤: 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 2 µm Ag
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
