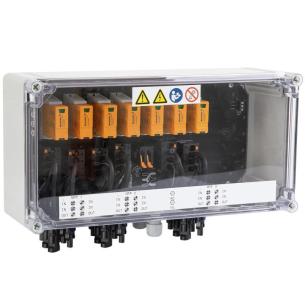

Combiner box (photovoltaik), pv next, 3 mpp's, 2 inputs / 1 output per mpp, surge protection ii, wm4c, 1100 v

Combiner box for inverters with 3 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:2 inputs, connection via WM4 C connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:20631 output, connection via WM4 C connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:2063MPP2 to 3:identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type II arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm2Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm2Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 240x400x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
