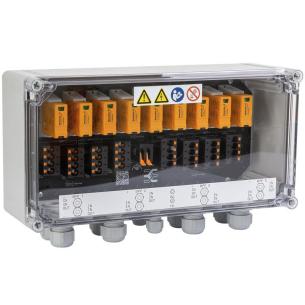

Combiner box (photovoltaik), pv next, 1100 v, 4 mpp s, 2 inputs / 2 outputs per mpp, surge protection i / ii, cable gland

Combiner box for inverters with 4 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:2 inputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.2 outputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.MPP2 to 4:identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type I + II combined arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm2Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm2Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 330x372x175 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
