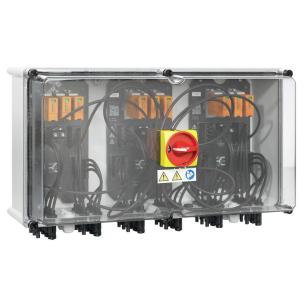

Combiner box (photovoltaik), pv next, 1000 v, 3 mpp's, 3 inputs / 3 outputs per mpp, surge protection ii, switch disconnector, wm4c

Combiner box for inverters with 3 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via WM4 C connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:20633 outputs, connection via WM4 C connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:2063MPP2 to 3:identical to MPP1Max. string voltage Uoc: 1000 VDC1 class/type II arrester with signal contactWith lockable DC load break switch for safe separation of the string lines according to DIN EN IEC 60947-3Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm2Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm2Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 334x558x249 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
