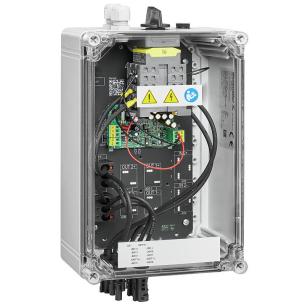

Combiner box (photovoltaik), pv next, 1 mpp, 2 inputs / 1 output per mpp, remote disconnector, mc4-evo 2, 1100 v

Combiner box for inverters with Fireman switch for the connection to 1 MPP tracker.Suitable for remote disconnection of the DC side by the fire department according to VDE-AR-E2100-712. Max. string voltage Uoc: 1100 VDCMPP1:2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:20631 output, connection via MC4-Evo 2 connector, compatible with cable type TUV 2 Pfg1169/08.07 / EN 50618:2063DC fireman switch: Switching off by undervoltage triping.Switching off by reaching a temperature of >= 100 °C in the housing.Automatic reconnection after the control voltage (230 V AC) is applied again.With signal contact.Connection of the fireman switch control line 230 VAC via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm2.Connection of the signal contact 24 VDC (max. 300 mA) via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm2.Protection class: IP65.All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 370x200x135 mm.Approval according to low voltage switchgear IEC 61439-1 and EN 61439-2
