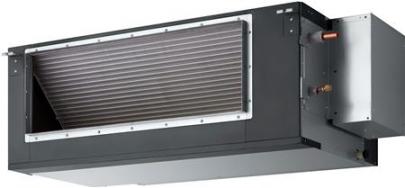

PANASONIC LUFT/LUFT INDEDEL S-250PE3E5B
Panasonic PACi Elite 25 kW Indedel,Passer til udedel U-250PZH2E8, Fjernbetjening CZ-RWS3 og med kabel CZ-RTC5B Cooling capacity Nominal (Min - Max) kW 23,20 (6,30 - 27,00) EER W/W 3,00 SEER 4,81 Pdesign kW 23,20 Input power cooling kW 7,73 Heating capacity Nominal (Min - Max) kW 28,00 (7,10 - 29,00) COP W/W 3,39 SCOP 3,60 Pdesign at -10°C kW 20,00 Input power heating kW 8,27 Indoor unit S-250PE3E5B Power source V / ph / Hz 220 - 230 - 240 / 1 / 50 External static pressure at shipment (with booster cable) Pa 75 - 130 - 200 Air volume Hi / Med / Lo m³/min 84 / 72 / 59 Sound pressure 4) Hi / Med / Lo dB(A) 47 / 45 / 42 Dimension H x W x D mm 486 x 1456 x 916 Net weight kg 88 Outdoor unit U-250PE2E8A Power source V / ph / Hz 380 - 400 - 415 / 3 / 50 Recommended fuse A 20 Air volume Cool / Heat m³/min 160 Sound pressure Cool / Heat (Hi) dB(A) 61 / 63 Dimension H x W x D mm 1500 x 980 x 370 Net weight kg 138 Piping connections Liquid pipe Inch (mm) 1/2 (12,70) Gas pipe Inch (mm) 1 (25,40) Pipe length range m 5 ~ 120 Elevation difference (in/out) 6) m 30 Pipe length for additional gas m 30 Additional gas amount g/m 50 Refrigerant (R410A) / CO2 Eq. kg / T 6,40 / 13,3632 Operating range Cool Min ~ Max °C -15 ~ +46 Heat Min ~ Max °C -20 ~ +24
