Indbygget Højttaler
170,00
DKK for 1 stk.
Se pris uden moms
Pris uden moms 136,00 DKK
Benyt prismatch - tryk her
Om produktet

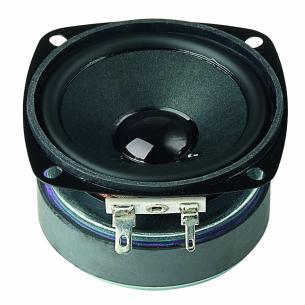

8 cm (3.3") HiFi fullrange speaker with high force factor and good sensitivity. Special developed for use in column-speakers and small bass-reflex cabinets, e.g. in miniature subwoofer / satellite systems.
Typical applications :
Column speakers
Mini HiFi systems
Typical applications :
Column speakers
Mini HiFi systems
Farve:
Sort
Højttaler, type:
HiFi Full-range Speaker
Højttalerdiameter:
3.3 "
Impedans:
8 Ohm
Vægt:
500 g
Vare nr.:
VS-FRS8M
EAN nr:
4007540020013
Enhed:
stk.
Min køb:
1
Leveringstid:
3-5 dage
Rated power: 30 Watt
Maximum power: 50 Watt
Nominal impedance: 8 Ohm
Frequency response (-10 dB): 100 - 20000 Hz
Mean sound pressure level: 88 dB (1W/1m)
Resonance frequency fs: 125 Hz
D.C. resistance Rdc: 7.2 Ohm
Mechanical Q factor Qms: 3.24
Electrical Q factor Qes: 0.58
Total Q factor Qts: 0.49
Equivalent volume Vas: 1.1 l
Effective piston area Sd: 29 cm2
Dynamically moved mass Mms: 1.8 g
Force factor Bxl: 4 T . M
Inductance of the voice coil L: 0.3 mH
Maximum power: 50 Watt
Nominal impedance: 8 Ohm
Frequency response (-10 dB): 100 - 20000 Hz
Mean sound pressure level: 88 dB (1W/1m)
Resonance frequency fs: 125 Hz
D.C. resistance Rdc: 7.2 Ohm
Mechanical Q factor Qms: 3.24
Electrical Q factor Qes: 0.58
Total Q factor Qts: 0.49
Equivalent volume Vas: 1.1 l
Effective piston area Sd: 29 cm2
Dynamically moved mass Mms: 1.8 g
Force factor Bxl: 4 T . M
Inductance of the voice coil L: 0.3 mH
