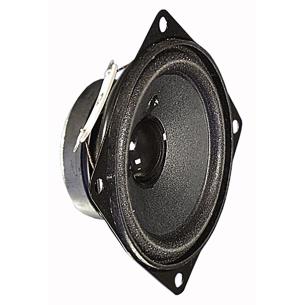

Indbygget Højttaler
70,00
DKK for 1 stk.
Se pris uden moms
Pris uden moms 56,00 DKK
Benyt prismatch - tryk her
Om produktet
Minimal monteringsdybde og lille magnet
Smalle netværks-søjlehøjttalere, kontrolhøjttaler til elektroniske udstyr og musikinstrumenter, modelkonstruktion
Smalle netværks-søjlehøjttalere, kontrolhøjttaler til elektroniske udstyr og musikinstrumenter, modelkonstruktion
Farve:
Sort
Højttaler, type:
Full-range Speaker
Højttalerdiameter:
2.5 "
Impedans:
4 Ohm
Vægt:
92 g
Vare nr.:
VS-FR7/4
EAN nr:
4007540020150
Enhed:
stk.
Min køb:
1
Leveringstid:
3-5 dage
Typical applications:
&bull: Narrow network column speakers
&bull: Control speakers for electronic devices
&bull: Model construction
&bull: Electronic musical instruments
Attributes :
&bull: Moisturised cone
&bull: Metal basket
Technical Data:
&bull: Rated power: 5 W
&bull: Maximum power: 10 W
&bull: Nominal impedance Z: 4 Ohm
&bull: Frequency response: 13020000 Hz
&bull: Mean sound pressure level: 86 dB (1 W/1 m)
&bull: Resonance frequency fs: 220 Hz
&bull: Voice coil diameter: 14 mm
&bull: Cutout diameter: 61 mm
&bull: Net weight: 0,092 kg
&bull: D.C. resistance Rdc: 3,4 Ohm
&bull: Mechanical Q factor Qms: 7,05
&bull: Electrical Q factor Qes: 3,61
&bull: Total Q factor Qts: 2,39
&bull: Equivalent volume Vas: 0,4 l
&bull: Effective piston area Sd: 22 cm²
&bull: Dynamically moved mass Mms: 1,0 g
&bull: Force factor Bxl: 1,1 T m
&bull: Inductance of the voice coil L: 0,1 mH
&bull: Heat resistance: −:25 ... 70 °C
